Display technology has evolved rapidly in recent years, and the discussion of LCD vs IPS panel remains central to anyone involved in display production, integration, or sourcing. Although both belong to the same family of technologies, their internal mechanisms and performance levels differ significantly. Understanding these differences can help you make better choices for display quality, cost efficiency, and long-term reliability.
What Is an LCD Panel?
An LCD (Liquid Crystal Display) panel is a flat-panel display device that uses liquid crystal material to control the passage of light. It is widely used across industries, including consumer electronics, industrial systems, kiosks, and vehicle dashboards.
Inside every LCD panel are two layers of glass with a thin layer of liquid crystals in between. These crystals act like tiny shutters. They do not produce light themselves but control how much light from the backlight passes through. The backlight, usually a white LED, provides brightness. Color filters then convert that light into red, green, and blue pixels to create the final image.
However, LCDs are not all the same. The technology includes several subtypes such as TN (Twisted Nematic), VA (Vertical Alignment), and IPS (In-Plane Switching). Each subtype differs in how the liquid crystals align and move when voltage is applied.
- TN panels focus on speed and affordability.
- VA panels offer higher contrast ratios.
- IPS panels deliver the best color accuracy and viewing angles.
Among these, IPS has become the preferred option for applications that require consistent image quality and long-term visual reliability, particularly in professional and touch-enabled displays.
What Is an IPS Panel?
An IPS (In-Plane Switching) panel is an advanced type of LCD technology designed to deliver more accurate colors and wider viewing angles than standard LCD panels. It was developed to solve two common problems found in earlier LCD types: color distortion and poor visibility when viewed from the side.
In an IPS panel, the liquid crystals are arranged horizontally, and they rotate within the same plane instead of tilting vertically. This structure allows light to pass through more evenly, which helps maintain consistent color and brightness across the entire screen. As a result, an IPS display looks clear and vivid even when you view it from sharp angles—typically up to 178 degrees both horizontally and vertically.
IPS panels also provide excellent color accuracy, often reaching 95% naar 100% of the sRGB color gamut, which makes them suitable for applications that demand true-to-life visuals such as design, imaging, and signage. You’ll notice that the brightness distribution is more uniform, and the display stays clear even when protective glass or touch layers are added on top. This is especially important if you’re involved in touch screen manufacturing, where consistent clarity and responsiveness really matter.
Key Differences Between LCD and IPS Panels
Technology Difference
The key distinction lies in how the liquid crystal molecules are arranged and controlled.
In a standard LCD panel (such as TN or VA), the crystals are aligned vertically and tilt when voltage is applied to control the light passing through. This design enables fast response times but limits the uniformity of light, resulting in narrow viewing angles and color inconsistencies.
By contrast, IPS (In-Plane Switching) technology arranges the crystals horizontally, allowing light to travel more evenly across the screen. This structure produces consistent brightness and color accuracy, even when viewed from the side. Because of this, IPS panels are widely used in industrial touch displays, medical monitors, and professional imaging equipment where clarity and reliability are crucial.
Color Accuracy and Contrast
Color performance is one of the biggest advantages of IPS technology. Standard LCDs typically cover around 70–80% of the sRGB color gamut, while modern IPS panels reach 95–100% sRGB, offering more realistic and vibrant colors. This makes IPS the preferred choice for applications where color precision matters — from digital signage to medical imaging.
IPS panels also maintain more stable contrast ratios across the screen, minimizing brightness shifts and preserving visual balance, even under strong lighting or after applying protective glass in touch display assemblies.
Dynamic Picture Quality Performance
When displaying motion or fast-changing visuals, IPS panels deliver smoother transitions and maintain clarity. The in-plane crystal movement ensures faster gray-to-gray response times, typically between 4–8 ms, which helps reduce motion blur.
Standard TN LCDs can reach even faster response times (as low as 1–5 ms), but they often sacrifice color depth and stability. VA panels, on the other hand, offer strong static contrast (tot 3000:1) but tend to show slight trailing shadows during motion.

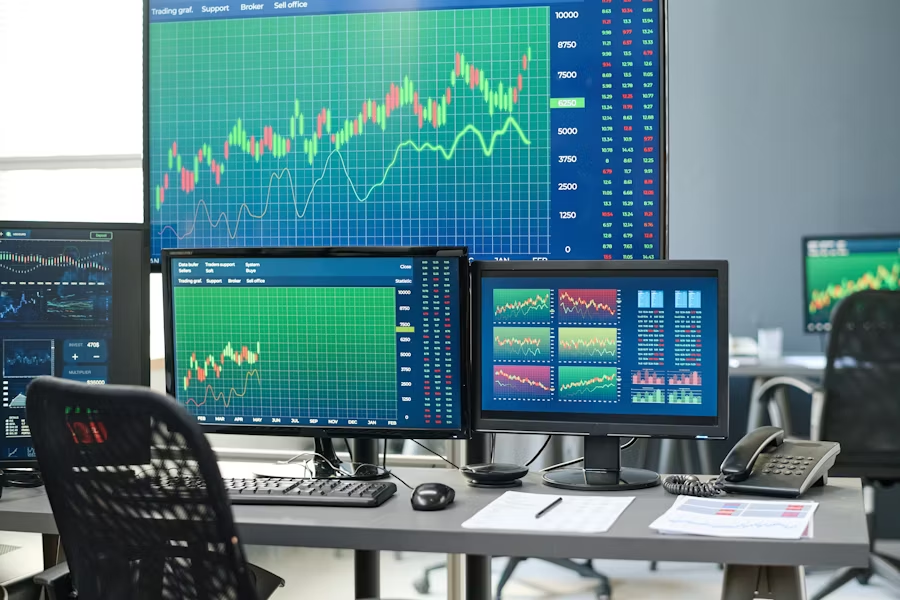

If your display will be used for video playback, interactive visualization, or real-time data monitoring, IPS technology provides a better balance between color accuracy and motion performance.
Viewing Angle and Visual Comfort
In daily use, viewing angle is one of the most visible differences between LCD and IPS technologies. A typical TN or VA LCD panel offers a viewing angle of about 90° to 120°. When you view it from the side or top, the image often looks darker, or colors appear distorted.
By contrast, an IPS panel maintains color accuracy and brightness up to 178° both horizontally and vertically, ensuring the image looks consistent from nearly any direction. This feature is especially valuable for industrial control systems, kiosks, or interactive touch displays, where users may not always face the screen directly.
Energy Saving and Environmental Protection
LCD panels are usually more energy-efficient. Their vertical liquid crystal alignment lets light pass easily, so less backlight power is needed. IPS panels use a horizontal structure that improves color and viewing angle but blocks more light, consuming about 10–15% more energy at equal brightness.
Both panels share similar eco-friendly designs. They use LED backlights, recyclable glass, and RoHS-compliant materials. The difference in environmental impact is small. LCDs remain slightly more efficient, while IPS panels keep improving with better optics and energy-saving systems.
LCD vs IPS Panel Comparison Table
| Feature | Standard LCD (TN/VA) | IPS Panel |
| Technology | Vertical crystal alignment; light controlled by tilting molecules | Horizontal crystal alignment; light passes evenly for consistent output |
| Color Accuracy | Covers about 70–80% sRGB; moderate color precision | Covers 95–100% sRGB; excellent color reproduction and stability |
| Contrast Ratio | VA panels high (tot 3000:1); TN lower | Balanced contrast with minimal brightness shift |
| Response Time | Very fast (1–5 ms typical for TN) | Slightly slower (4–8 ms typical) but smoother color transitions |
| Motion Handling | Fast but may cause color loss or ghosting | Smooth motion with better gray-to-gray clarity |
| Viewing Angle | 90°–120°; image darkens or distorts when viewed off-axis | Up to 178°; consistent brightness and color from all angles |
| Brightness Uniformity | Depends on backlight design; can vary across screen | Even brightness distribution across the panel |
| Power Consumption | Lower; crystals allow more light to pass with less backlight | About 10–15% higher at equal brightness due to horizontal structure |
| Environmental Impact | Energy-efficient; LED backlight and recyclable glass | Similar eco-friendly design; improving with new optical systems |
| Cost | More affordable and widely used | Higher cost but superior color and viewing performance |
Pros and Cons: LCD vs IPS Panels Side by Side
Pros of Standard LCD (TN / VA):
- Lower cost. Easier to source and cheaper per unit for mass production.
- High responsiveness (TN). Response times as low as 1–5 ms, useful for fast-motion applications.
- Strong static contrast (VA). VA variants can reach up to 3000:1, giving deeper blacks in static scenes.
- Better baseline energy efficiency. Vertical crystal alignment yields higher light transmittance, so the required backlight power is lower.
- Good durability for basic use. Reliable for entry-level monitors, kiosks, and many industrial displays.
Cons of Standard LCD (TN / VA):
- Narrower viewing angles. Colors and brightness shift noticeably outside about 90°–120°, reducing off-axis readability.
- Weaker color accuracy. Typical sRGB coverage is around 70–80%, not ideal for color-critical tasks.
- Variable motion artifacts. VA panels may show trailing or ghosting; TN panels sacrifice color depth for speed.
- Less uniform brightness. Backlight and panel design can lead to visible non-uniformity on larger screens.
Pros of IPS Panel:
- Brede kijkhoeken. Color and contrast remain stable up to 178° horizontally and vertically, ideal for multi-viewer setups.
- High color accuracy. Typical sRGB coverage 95–100%, suitable for design, imaging, and medical displays.
- Uniform brightness and color. Even light distribution reduces hotspots and maintains visual balance under protective glass or touch layers.
- Balanced dynamic performance. Gray-to-gray response around 4–8 ms gives smooth motion without major color shifts.
- Better multi-user experience. Consistent image quality makes IPS preferable for meeting rooms, public displays, and touch interfaces.
Cons of IPS Panel:
- Higher cost. Production complexity raises unit price versus standard LCD types.
- Slightly higher power draw. Expect roughly 10–15% greater energy use at equal brightness due to lower native light transmittance.
- Moderate response vs high-end TN. Although improved, top TN panels remain faster for ultra-high-speed needs.
- More sensitive to driver and module design. Achieving peak IPS performance requires careful backlight and driver tuning.
How to Choose the Right Panel for Your Business
1. Match panel type to your application scenario

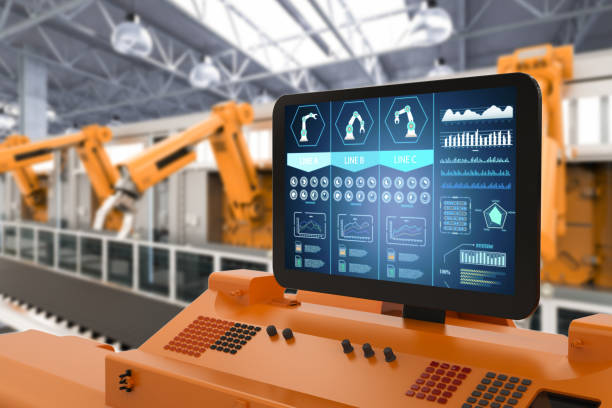

If your display will be used in industrial control rooms, factory dashboards, or ATMs, where information needs to be visible under strong lighting for long hours, a high-quality VA-type LCD may offer the best value. Its strong contrast ratio (often 2500:1–3000:1) gives excellent depth and clarity for data readouts, while its lower power draw keeps heat generation and energy costs in check.

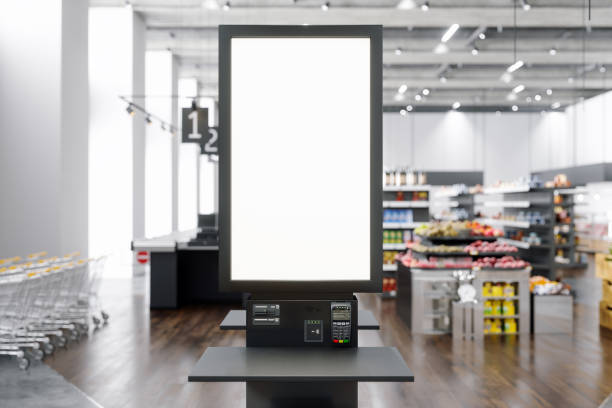

By contrast, if your product is a medical display, interactive kiosk, or digital signage that multiple people will view from different angles, an IPS panel will serve you better. Its consistent 178° viewing angle and nearly 100% sRGB color coverage ensure color-critical images and graphics remain accurate no matter where users stand.
2. Balance performance with energy efficiency
Think of the backlight as the “engine” of your display. TN and VA panels let more light through, meaning less power is needed to achieve the same brightness—typically 10–15% less energy use than an IPS. However, IPS panels now integrate energy-optimized LED drivers and low-leakage LC materials, closing that efficiency gap. For businesses running displays 24/7, like detailhandel or transportation hubs, that improvement can translate into real operational savings over time.
3. Consider visual comfort and customer experience
In de detailhandel, gezondheidszorg, or public-facing applications, user comfort often outweighs raw efficiency. IPS screens reduce color shift and brightness falloff, making text and graphics easier on the eyes, especially during extended viewing. Imagine a self-service kiosk where the user approaches from an angle; an IPS display ensures the screen still looks crisp and readable, enhancing trust in the device and, by extension, your brand.
4. Evaluate long-term reliability and maintenance
LCD and IPS modules have different maintenance profiles. TN and VA types are mechanically simpler, meaning fewer potential alignment issues, but their optical layers can degrade faster under high-temperature or high-humidity conditions. IPS panels, thanks to improved alignment layers and UV-stable LC materials, typically maintain color stability for 30,000–50,000 hours of operation. For mission-critical systems such as control terminals, medical devices, or transportation signage, that consistency can prevent costly downtime.
5. Don’t overlook total ownership cost
While IPS modules are more expensive upfront, their durability, user satisfaction, and lower calibration needs often offset the higher purchase price. For cost-sensitive projects, a hybrid approach can work well: use IPS displays where visibility and color precision matter most, and standard LCDs in secondary or back-end interfaces.
Final Thoughts
Choosing the right panel for your displays is about matching technology to purpose. If budget and power efficiency are key, a good LCD panel delivers solid value. If color fidelity, wide viewing angles, and immersive experience are the priority, an IPS panel is worth the premium.
At TouchWo, you’ll find over a decade of expertise, in-house manufacturing across five core production stages, and a product range from 5″ to 110″ sizes—engineered for sectors like retail, gezondheidszorg, and industrial control. Whether your application demands endurance, precision, or interactive performance, TouchWo supports the right panel solution tailored to your needs.
Ready to enhance your next display project? Contact TouchWo today to explore the best display solution for your needs.
