フロアスタンドキオスク

>

27″Self Service Touch Kiosk(X86) GD27D2

モデル: GD27D2

27″Self Service Touch Kiosk(X86) GD27D2

Full-HD 10-Point PCAP Touchscreen
Professional Barcode Scanning & Fast Receipt Printing
POS-Ready Design with Flexible Customization
Floor-Standing, Desktop & Wall-Mounted Deployment
Lockable Side-Opening Structure for Easy Maintenance
Industrial-Grade Reliability for Continuous Operation

特徴

●産業グレードの電源
●30,000時間の長寿命LCDディスプレイ
● 複数のICカードリーダーから選択可能
●簡単な壁取り付けまたは床取り付け

Smart Self-Service

Fast Checkout

Flexible Deployment

Easy Maintenance

Built for Faster Self-Service

An all-in-one self-service kiosk that helps businesses improve efficiency, 待ち時間を減らす, and enhance customer experience.

Smart Self-Service
Responsive touch technology creates a seamless ordering experience.

Fast Checkout
Scan, 支払う, and print receipts in seconds.

Flexible Deployment
Fits effortlessly into a wide range of commercial spaces.

Easy Maintenance
Modular structure minimizes downtime and simplifies upkeep.

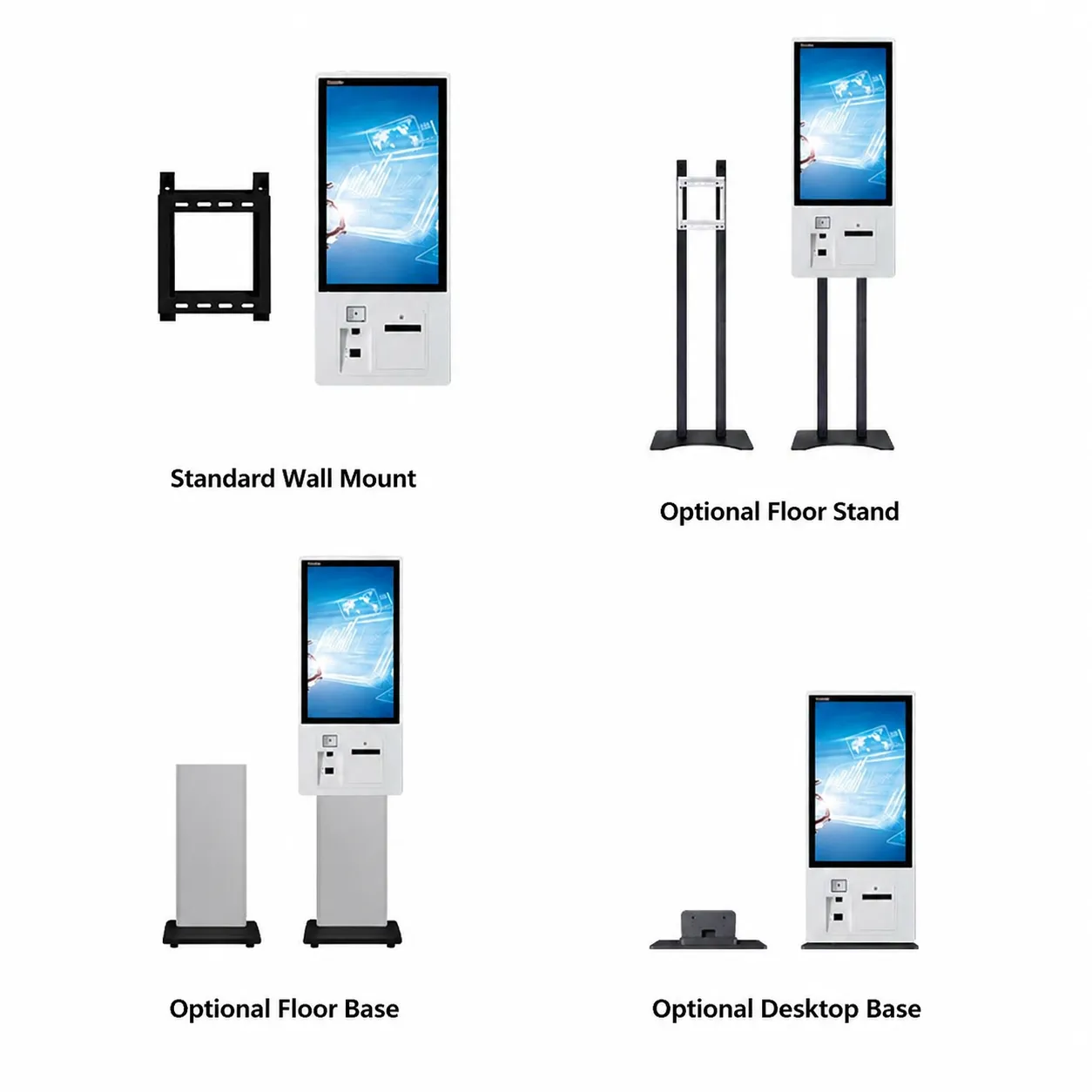

柔軟な設置

Supports wall-mounted, フロアスタンド, and desktop installation for different retail and self-service environments.

Built for Reliable Performance

Built for Busy Retail Environments

Designed for continuous use in retail stores and quick-service restaurants, ensuring smooth and reliable daily operation.

Durable Retail Design

Reinforced structure and high-quality finish help withstand frequent public use and extend product lifespan.

Safe Public Use

Built-in electrical protection ensures stable and secure operation in customer-facing environments.

Flexible Configuration Options

Flexible Display Sizes

The GD-D2 Series supports a wide range of optional sizes and peripherals to meet different retail and self-service requirements. Available in 23.8″, 27″, そして32″ オプションを表示します, it ensures the right fit for various commercial environments.

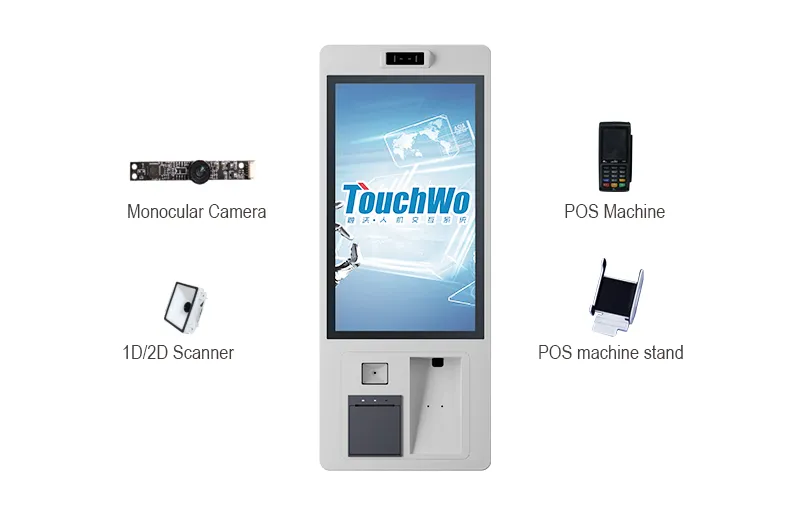

Integrated Peripheral Options

Optional QR code scanner, receipt printer, card reader, and POS system integration enable a complete self-service solution in one compact device, improving transaction speed and user convenience.

インターフェイス I/0

仕様

PCシステム- ウィンドウズ

CPU
IntelCeleron®J6412
Intel® Core™ i5-7300U
インテル® Core™ i7-10510U
グラフィックGPU
インテル® UHD グラフィックス
Intel®HDグラフィックス 620
インテル® UHD グラフィックス
オーディオ
HDオーディオ: ALC269
Intel® High Definition Audio
HDオーディオ: ALC269
メモリ
DDR4-2666MHz-SODIMM-8G
DDR4-2666MHz-SODIMM-8/16/32G
DDR4-2666MHz-SODIMM-8G
ストレージ
MSATA-128GB
mSATA./SSD-128/256GB
MSATA-256GB
ネットワーク
10/100/1000M RJ45, 802.11A/b/g/n/ac wifi
10/100/1000M RJ45, 802.11A/b/g/n/ac wifi
10/100/1000M RJ45, 802.11A/b/g/n/ac wifi
プリインストールOS
ウィンドウズ 10 企業 2019 LTSC
ウィンドウズ 10 企業 2019 LTSC
ウィンドウズ 10 企業 2019 LTSC

液晶パネル

画面対角線
27 インチ
物理解像度
1920*1080
アスペクト比
16:9
表示アクティブ画面サイズ (んん)
599 * 337.5 んん
表示される色
16.7M
輝度 (cd/m2)
≥250
対比
1000:1
視角水平/垂直 (°)
178/178
バックライトの寿命 (時間)
導かれた 30,000
リフレッシュレート
60 Hz

タッチパネル

タッチテクノロジー
PCAP
応答時間
<5ms
タッチポイント
10 ポイント基準
タッチ効果認識
>1.5mm
スキャン頻度
200Hz
スキャン精度
4096 * 4096
動作電流/電圧
180Ma/DC+5V±5%
表面硬度
モース級 7 防爆ガラス

動作環境

動作温度
0℃~50℃
動作湿度
10% - 80%
保管温度
-5℃~60℃
保管湿度
10% - 85%

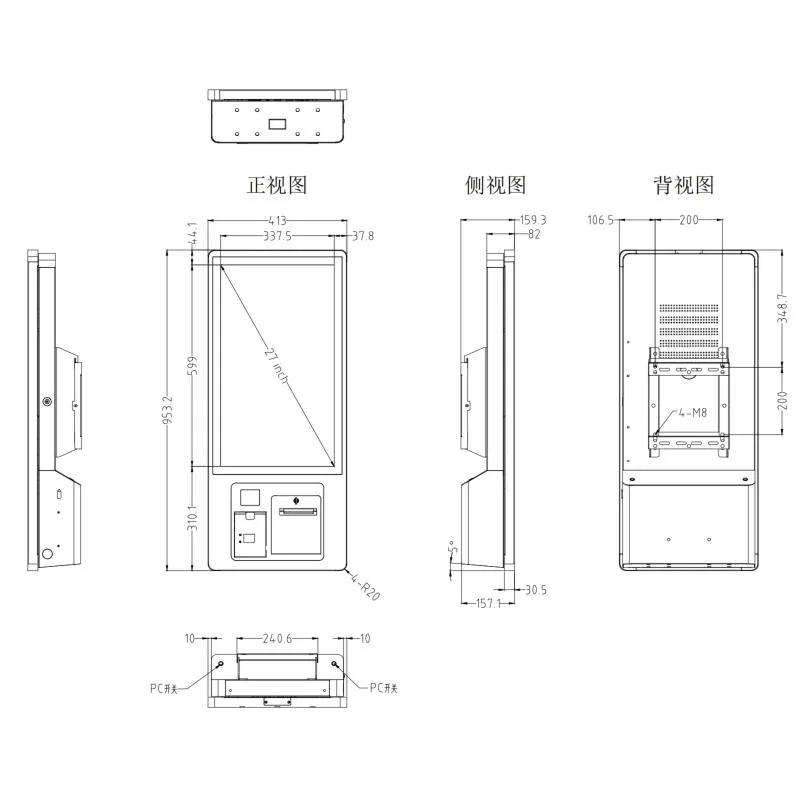

寸法

機械(cm)
413(W)* 953.2(L)* 157.1(T)
パッケージ(cm)
520(W)* 1050(L)* 250(T)
正味重量
27.75 KG
総重量
31.75 KG

電源パラメータ

電源入力
110-240AC50/60Hz
電力出力
DC 12V4A
待機時消費電力
≤0.5W
全体の消費電力
48W

配送に含まれるもの

マニュアル
* 1
WIFIアンテナ
* 1
壁掛けブラケット
* 1
AC電源ケーブル
* 1

ファイルのダウンロード

データシートのダウンロード

ドキュメントの開発中

ドキュメントの開発中 オペレーションシステム ダウンロードリンク
