17" Touch PC DM17F

Model: DM17F

17″ Touch PC DM17F

Lightweight, high-strength custom molding—built for industrial rigors.
Die-cast seamless housing delivers ultimate stability and durability.
External adapter design ensures a clean look and effortless operation.
Easily configure with diverse modular options for every requirement.
10-point touch with 5 ms response and ±1 mm precision for seamless interaction.
Multiple mounting choices enhance reliability and installation resilience.

Features

● Industrial-grade Power Supply

● 30,000-hour extended life LCD display

● Wall mounted/desktop stand/embedded etc

● Surface IP65 waterproof

Get a quote

Custom High-Strength Design

Sealed Unibody Structure

Ultra-Fast Touch Response

IP65 Front Protection

Engineered for Embedded Excellence

Rugged, Reliable, Ready for Industrial Cabinets

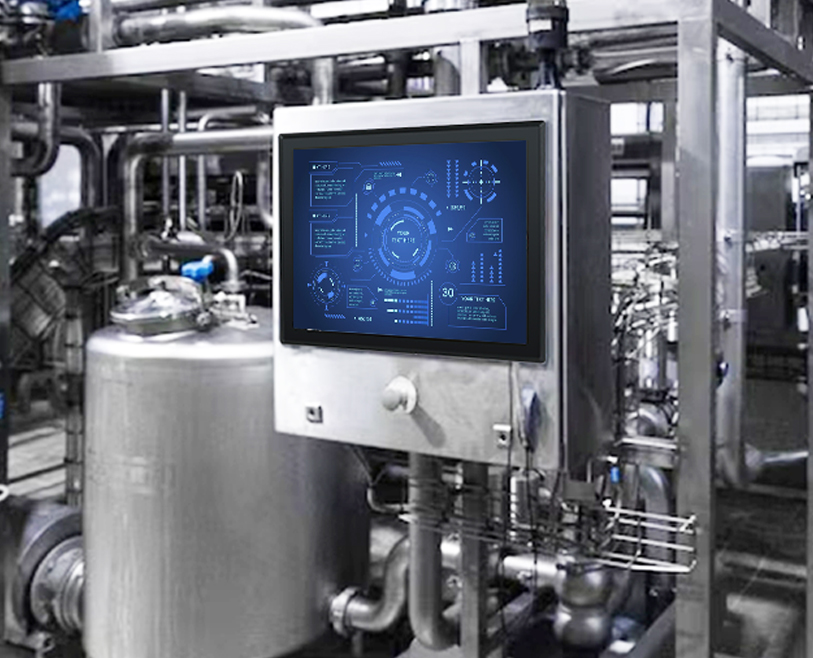

✔Designed for front-embedded installation in industrial cabinets and kiosks

✔Die-cast aluminum front bezel for secure and precise mounting

✔All-metal enclosure with private molds ensures strength and consistency

✔Ideal for automation, control systems, and industrial HMIs

Versatile Installation Options

Supports embedded and wall-mounted setups, offering flexibility for any installation requirement.

Ruggedized for Industrial Reliability

Enhanced Electrostatic Protection

Optimized for static discharge resistance, ensuring safety.

Grounding & Anti-Interference

Built-in grounding and improved anti-interference for reliable performance.

Exceptional Waterproof & Dustproof

IP65-rated for top-tier protection in harsh environments.

Multiple Size Options: Choose from 8”~21.5“ suit your specific needs.

● 8″ to 21.5″ full-size range for all application scenarios

● High-sensitivity touch display for seamless interaction

● Multi-platform support (Monitor/Android/X86) for smart switching

●Customizable: interfaces，POE, anti-glare, high-brightness, wide-temperature & more.

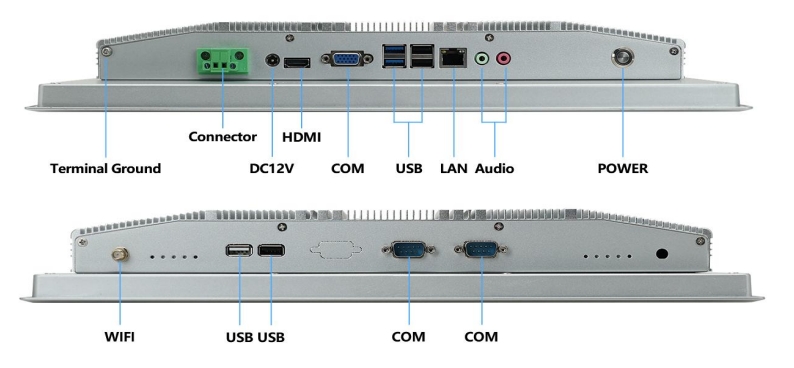

Interface l/0

Specifications

PC System- Windows

CPU

Intel Celeron® J6412

Intel® Core™ i5-8Gens

Intel® Core™ i7-10Gens

Graphic GPU

Intel® UHD Graphics

Intel® Iris® Plus Graphics 645

Intel® UHD Graphics

Audio

HD Audio: ALC269

Memory

DDR4-2666MHz- SODIMM-4G

DDR4-2666MHz-SODIMM-8G

DDR4-2666MHz-SODIMM-16G

Storage

mSATA-128GB

mSATA-256GB

mSATA-512GB

Network

10/100/1000M RJ45, 802.11a/b /g/n/ac Wifi

10/100/1000M RJ45, 802.11a/b/g/n/ac Wifi

Pre-installed OS

Windows 10 /11/Linux

LCD Panel

Screen diagonal

17inch

Physical resolution

1280*1024

Aspect ratio

4：3

Display active screen size (mm)

339*271.5

Colours displayed

16.7M ，16.7M,72% NTSC

Brightness (cd/m2）

≥250cd/m2 ， ≥350cd/m2

Contrast

≥ 1000：1

Visual Angle H/V (°)

89/89/89/89 (Typ.)(CR≥10)

Backlight Lifetime (hours)

LED 30,000

Refrash Rate

60 Hz

Touch Panel

Touch technology

PCAP

Response time

<5ms

Touch points

10 points standard

Touch effective recognition

>1.5mm

Scanning Frequency

200Hz

Scanning accuracy

4096 * 4096

Working Current/Voltage

180Ma/DC+5V±5%

Surface Hardness

Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature

0℃-50℃

Operation Humidity

10% - 80%

Storage Temperature

-5℃-60℃

Storage Humidity

10% - 85%

EMC

CE/FCC Class B

Dimension

Machine(mm)

397（W）*329.5（H）*55.8（T）

Embedded opening size(mm)

387*319.5

Net weight

4.47KG

Gross weight

6.25KG

Mounting bracket

Embedded/Wall mounted

Power supply parameters

Power Input

110-240V AC 50/60Hz

Power Output

DC 12V 5A

Standby power consumption

≤0.5W

Overall power consumption

<40W

Included in the Delivery

Manual

* 1

Snap

* 4

WIFI antenna

* 1

Power Adapter&cable

* 1

External Connectors

RJ45 Ports

* 1

Audio I/O

* 1

USB

* 4

WIFI

* 1

DC In

2.5mm DC12V*1

HDMI out

* 1

Earphone/MICinterface

* 1/1

COM

2 * RS-232(1 * RS-485optional)
