19" Android Touch Pc DM19G

Model: DM19G

19″ Android Touch Pc DM19G

Physical resolution ：1280*1024
Category：ARM
Contrast ： ≥ 1000：1
Screen diagonal ：19 inch
Aspect ratio ：4 : 3

Features

● Industrial-grade Power Supply

● 15,000-hour extended life LCD display

● Support multiple installation requirements

● Surface IP65 waterproof

Get a quote

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design

53% Smaller Bezel

Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.

Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.

Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.

Low Maintenance

2-year repair rate is as kw as 1.5%

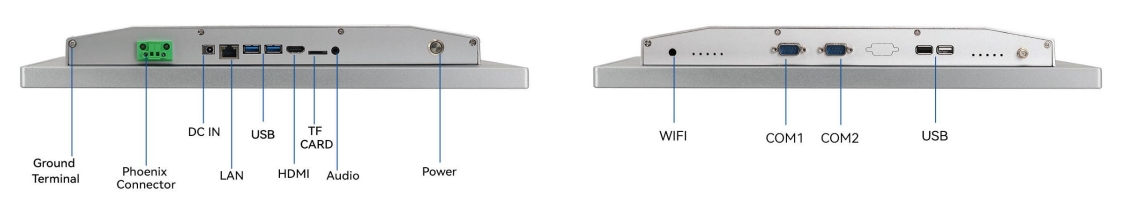

Interface l/0

Specifications

LCD Panel

Screen diagonal

19 inch

Physical resolution

1280*1024

Aspect ratio

4 : 3

Display active screen size (mm)

377.3（W）*302（H）

Colours displayed

16.7M, 72% NTSC

Brightness (cd/m2）

≥250cd/m2

Contrast

≥ 1000：1

Visual Angle H/V (°)

85/85/85/85(Typ.) (CR≥10)

Backlight Lifetime (hours)

LED 30,000

Refrash Rate

60 Hz

Touch Panel

Touch technology

PCAP

Response time

<5ms

Touch points

10 points standard

Touch effective recognition

>1.5mm

Scanning Frequency

200Hz

Scanning accuracy

4096 * 4096

Working Current/Voltage

180Ma/DC+5V±5%

Surface Hardness

Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature

0℃-50℃

Operation Humidity

10% - 80%

Storage Temperature

-5℃-60℃

Storage Humidity

10% - 85%

EMC

CE/FCC Class B

Dimension

Machine(cm)

42.6（L） * 35.1（W） * 5.2（H）

Package(cm)

49（L） * 45.5（W） * 15（H）

Net weight

6.16 KG

Gross weight

7.88 KG

Mounting bracket

Embedded/Wall mounted

Power supply parameters

Power Output

DC 12V 3A

Standby power consumption

<30W

Included in the Delivery

Manual

* 1
