49" Android Touch PC HR49

Model: HR49

49″ Android Touch PC HR49

Sleek Unibody Design with Precision Engineering
7th-gen IR touch technology, <5ms response, 10-point multi-touch, anti-glare
Sunlight-Readable Optical Performance
Vandal-Proof Security Construction
Ultra-Low Failure Rate, Reliable Long-Term Performance
Plug-and-play operation with auto-power management

Features

● Industrial-grade Power Supply

● 30,000-hour extended life LCD display

● Wall mounted / Floor stand etc

● Surface IP65 waterproof

Get a quote

4K UHD Display

Ultra-Slim Integration

Integrated Touch &
Display System

Fast Touch Response

Durable & Vandal-Resistant Construction

Crafted with a combination of aluminum alloy and sheet metal structure, our device features a laser-cut backplate for a sleek and precise finish.

✓ Device is built with a premium aluminum alloy and sheet metal structure, offering enhanced strength and durability for long-term use.

✓ The laser-cut backplate ensures a sleek and precise finish, contributing to both aesthetic appeal and structural integrity.

✓ The wear-resistant and corrosion-proof coating provides an extra layer of protection, making the device resilient to daily wear and environmental factors.

Flexible Installation

One-touch power on/off for easy installation, no on-site setup required.Select from wall-mounted or mobile stand options to fit any space.

Sleek & Efficient: All-in-One Smart Solution

Sleek & Elegant

Slim, streamlined design with premium craftsmanship for a modern look.

Reliable Performance

Low failure rate, ensuring stable, long-term operation.

All-in-One System

Touch, display, and PC integrated for a compact, efficient solution.

Versatile Options, Tailored for You

•Available in sizes from 32″ to 85″, offering flexible options for any environment.

•Ideal for a wide range of applications, from education to business settings.

•Choose from multiple system options to match diverse use cases and scenarios.

•Anti-glare technology ensures precise operation, even in challenging lighting conditions

Interface l/0

Specifications

AndroidSystem

CPU

Rockchip RK3568

Rockchip RK3288

Rockchip RK3588

Graphic GPU

ARM G52 2EE

Mali-T864

Mali-G610

Audio

Memory

2G (4G optional)

4G (8G optional)

Storage

16G (32G optional)

16G eMMC

64G/128G eMMC

Network

10/100M RJ45, 802.11 a/b/g/n/ac Wifi

Pre-installed OS

Android 11

Android 9

Android 12

LCD Panel

Screen diagonal

49 inch

Physical resolution

1920*1080

Aspect ratio

16：9

Display active screen size (mm)

1076 * 606 mm

Colours displayed

16.7M

Brightness (cd/m2）

300

Contrast

1400：1

Visual Angle H/V (°)

175/175

Backlight Lifetime (hours)

LED 30,000

Refrash Rate

60 Hz

Touch Panel

Touch technology

PCAP

Response time

<5ms

Touch points

10 points standard

Touch effective recognition

>1.5mm

Scanning Frequency

200Hz

Scanning accuracy

4096 * 4096

Working Current/Voltage

180Ma/DC+5V±5%

Surface Hardness

Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature

0℃-50℃

Operation Humidity

10% - 80%

Storage Temperature

-5℃-60℃

Storage Humidity

10% - 85%

Dimension

Machine(cm)

112.7（L）*65.7（W）* 6（H）

Package(cm)

122.5（L）*66.2（W）* 14.5（H）

Net weight

26.2 KG

Gross weight

33.2 KG

Power supply parameters

Power Input

110-240V AC 50/60Hz

Power Output

DC 12V 5A

Standby power consumption

≤0.5W

Overall power consumption

<105W

Included in the Delivery

Manual

* 1

Wall mount bracket

* 1

WIFI antenna

* 1

Power cable

* 1

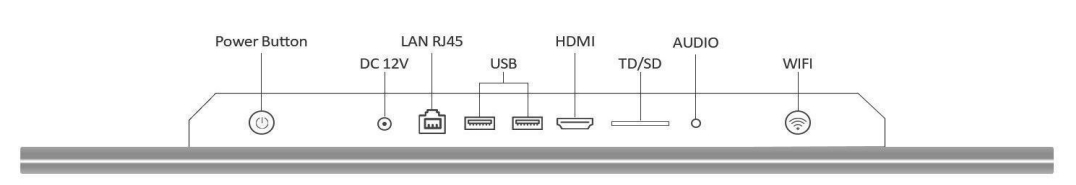

External Connectors

Power Button

* 1

DC12V

* 1

HDMI out

* 1
