10.1" Touch Pc DM101F

Model: DM101F

10.1″ Touch Pc DM101F

Physical resolution :1280*800(1920*1200(optional) ,1920*1200
Category:X86
Contrast :≥ 1000:1 , ≥ 900:1
Screen diagonal :10.1inch
Aspect ratio :4:3

Features

● Industrial-grade Power Supply
● 30,000-hour extended life LCD display

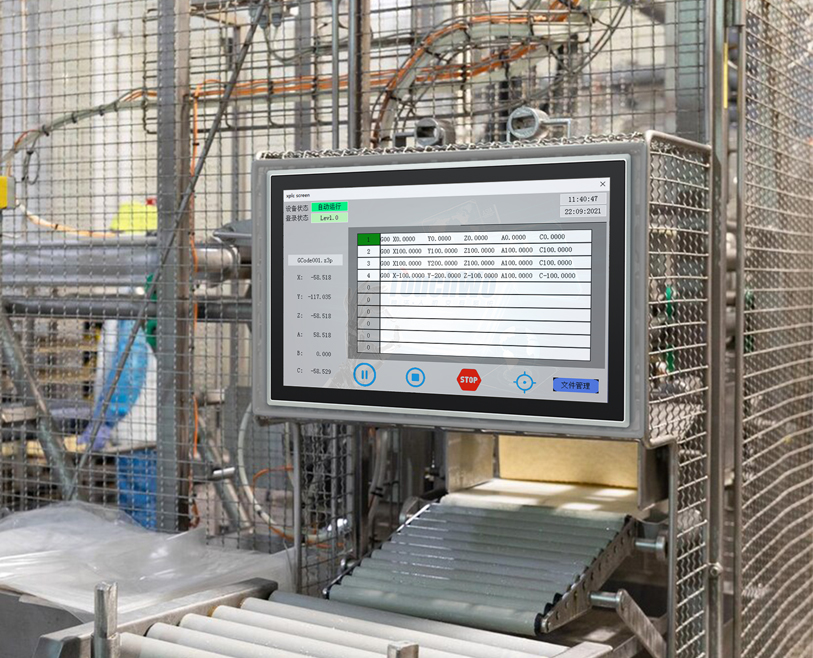

● Wall mounted/desktop stand/embedded etc
● Surface IP65 waterproof

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design
53% Smaller Bezel
Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

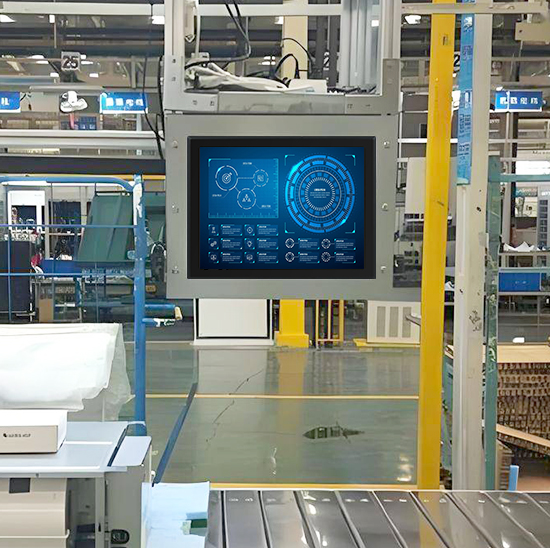

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.



Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.



Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.



Low Maintenance

2-year repair rate is as kw as 1.5%

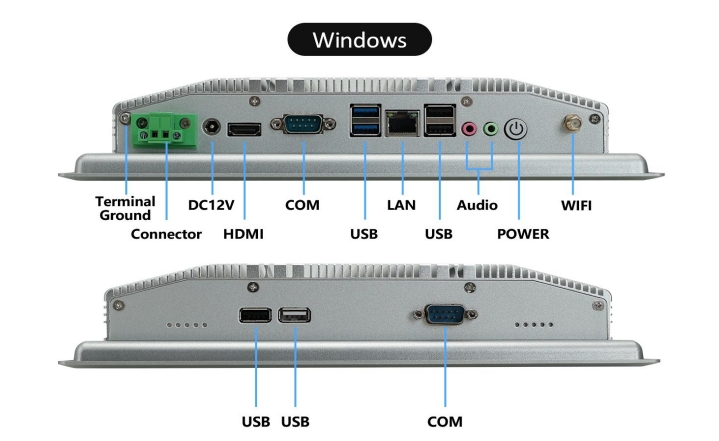

Interface l/0

Specifications

LCD Panel

Screen diagonal
10.1inch
Physical resolution
1280*800(1920*1200(optional) ,1920*1200
Aspect ratio
4:3
Display active screen size (mm)
217.6*136.5
Colours displayed
16.7M
Brightness (cd/m2)
≥250cd/m2 ,≥300cd/m2
Contrast
≥ 800:1 ,≥ 900:1
Visual Angle H/V (°)
85/85/85/85(Typ.)(CR≥10)
Backlight Lifetime (hours)
LED 15000 ,LED 30000
Refrash Rate
60 Hz

Touch Panel

Touch technology
PCAP
Response time
<5ms
Touch points
10 points standard
Touch effective recognition
>1.5mm
Scanning Frequency
200Hz
Scanning accuracy
4096 * 4096
Working Current/Voltage
180Ma/DC+5V±5%
Surface Hardness
Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature
0℃-50℃ ,-20~70℃
Operation Humidity
10% - 80%
Storage Temperature
-5℃-60℃
Storage Humidity
10% - 85%
EMC
CE/FCC Class B

Dimension

Machine(mm)
268(W)*188.5(H)*50.8(T)
Embedded opening size(mm)
258(W)*178.5(H)
Net weight
1.65KG
Gross weight
3.18KG
Mounting bracket
Embedded/Wall mounted

Power supply parameters

Power Input
110-240V AC 50/60Hz
Power Output
DC 12V 5A
Standby power consumption
≤0.5W
Overall power consumption
<50W

Included in the Delivery

Manual
* 1
Snap
* 4
WIFI antenna
* 1
Power Adapter&cable
* 1
