15" Touch Pc DM15F

Model: DM15F

15″ Touch Pc DM15F

Physical resolution :1024*768
Category:X86
Contrast : ≥1000:1
Screen diagonal :15inch
Aspect ratio :4:3

Features

● Industrial-grade Power Supply
● 50,000-hour extended life LCD display
● Wall mounted/desktop stand/embedded etc
● Surface IP65 waterproof

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design
53% Smaller Bezel
Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.



Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.



Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.



Low Maintenance

2-year repair rate is as kw as 1.5%

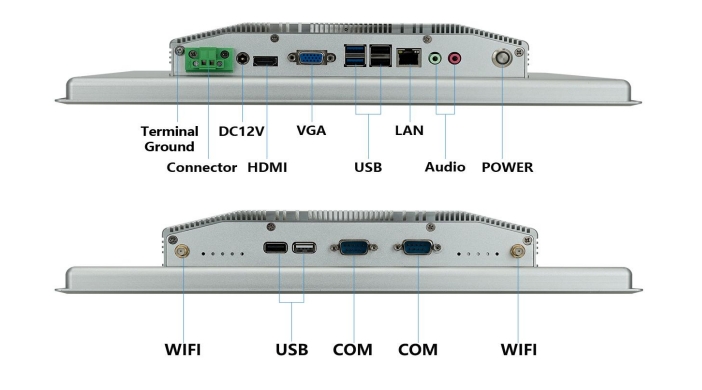

Interface l/0

Specifications

LCD Panel

Screen diagonal
15inch
Physical resolution
1024*768
Aspect ratio
4:3
Display active screen size (mm)
305.5*229.5
Colours displayed
16.7M,72% NTSC
Brightness (cd/m2)
≥350cd/m2
Contrast
≥ 1000:1
Visual Angle H/V (°)
89/89/89/89 (Typ.)(CR≥10)
Backlight Lifetime (hours)
LED 50,000
Refrash Rate
60 Hz

Touch Panel

Touch technology
PCAP
Response time
<5ms
Touch points
10 points standard
Touch effective recognition
>1.5mm
Scanning Frequency
200Hz
Scanning accuracy
4096 * 4096
Working Current/Voltage
180Ma/DC+5V±5%
Surface Hardness
Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature
0℃-50℃
Operation Humidity
10% - 80%
Storage Temperature
-5℃-60℃
Storage Humidity
10% - 85%
EMC
CE/FCC Class B

Dimension

Machine(mm)
359(W)*283(H)*56(T)
Embedded opening size(mm)
349*273
Net weight
4.06KG
Gross weight
5.85KG
Mounting bracket
Embedded/Wall mounted

Power supply parameters

Power Input
100-240V AC 50/60Hz
Power Output
DC 12V 5A
Standby power consumption
≤0.5W
Overall power consumption
<40W

Included in the Delivery

Manual
* 1
Snap
* 4
WIFI antenna
* 1
Power Adapter&cable
* 1
