7" Touch Monitor TD070

Model: TD070

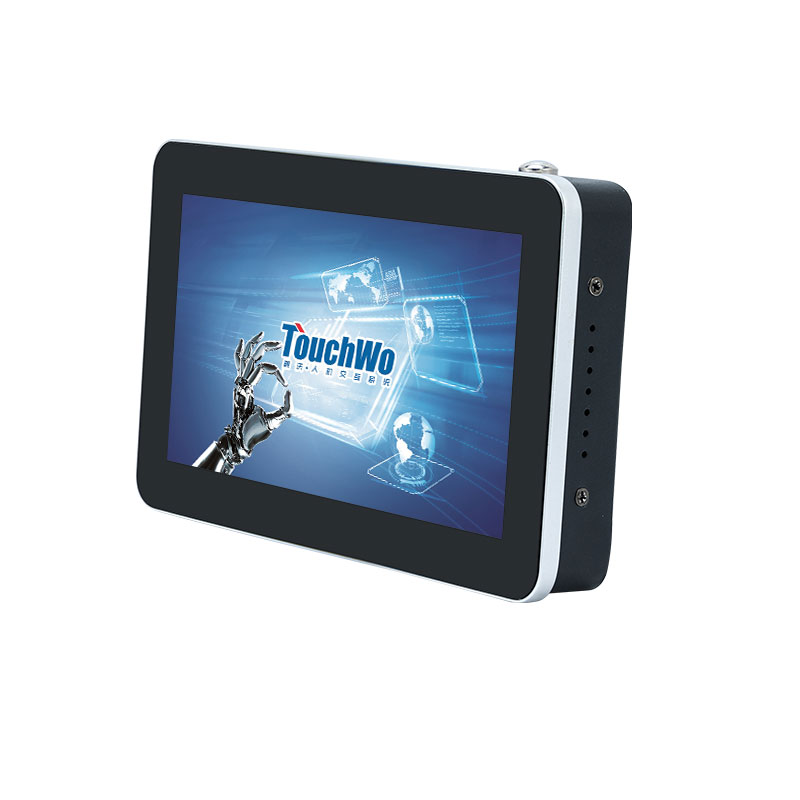

7″ Touch Monitor TD070

Physical resolution :1024*600
Category:Monitor
Contrast :800:1
Screen diagonal :7inch
Aspect ratio :16:9

Features

● Industrial-grade Power Supply
● 15,000-hour extended life LCD display

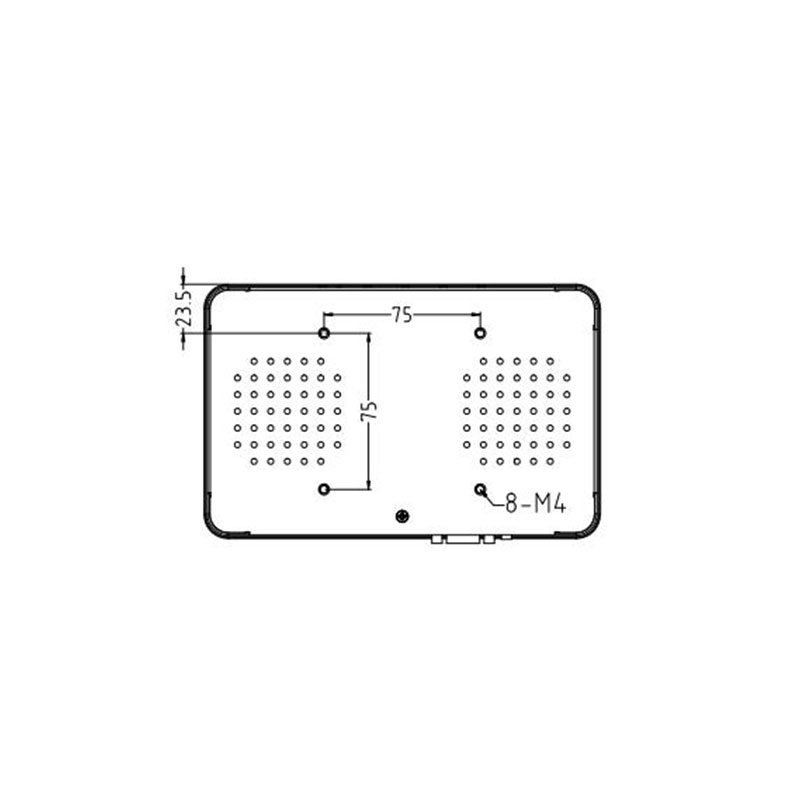

● Wall mounted/desktop stand/embedded etc
● Surface IP65 waterproof

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design
53% Smaller Bezel
Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.



Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.



Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.



Low Maintenance

2-year repair rate is as kw as 1.5%

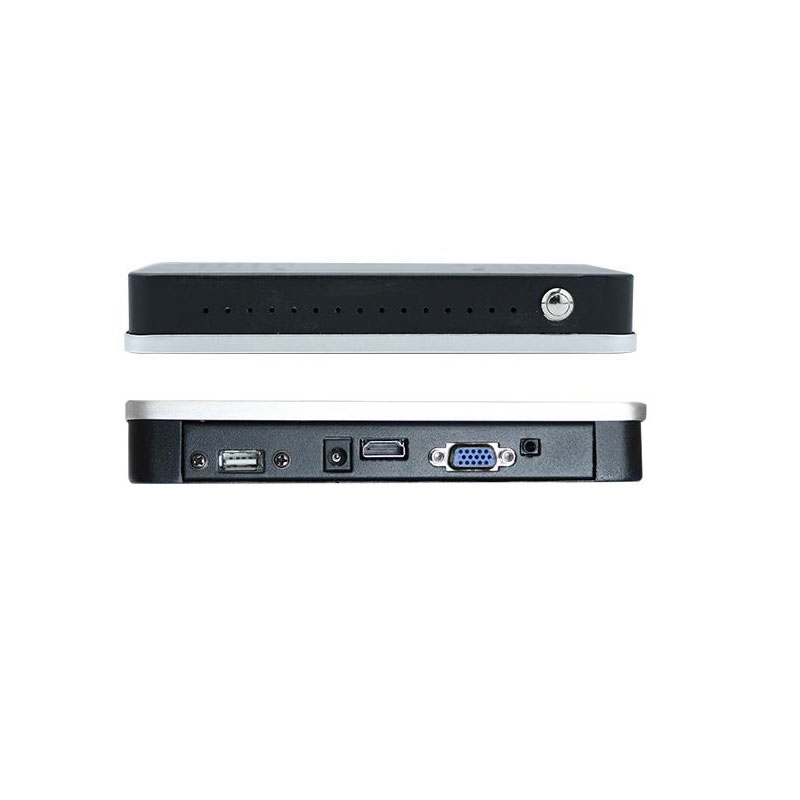

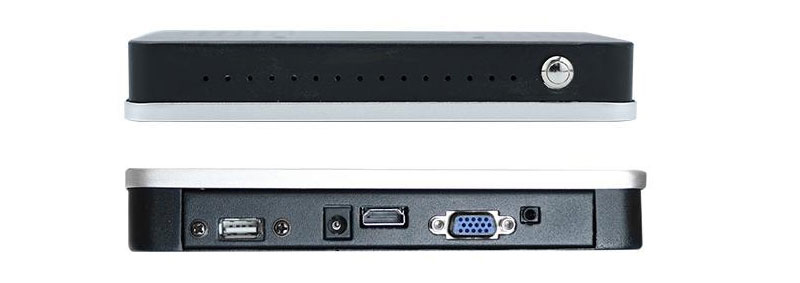

Interface l/0

Specifications

LCD Panel

Screen diagonal
7inch
Physical resolution
1024*600
Aspect ratio
16:9
Display active screen size (mm)
155.5 * 87.5
Colours displayed
16M
Brightness (cd/m2)
250
Contrast
800:1
Visual Angle H/V (°)
89/89/89/89
Backlight Lifetime (hours)
LED 15,000
Refrash Rate
60 Hz

Touch Panel

Touch technology
PCAP
Response time
<5ms
Touch points
10 points standard
Touch effective recognition
>1.5mm
Scanning Frequency
200Hz
Scanning accuracy
4096 * 4096
Working Current/Voltage
180Ma/DC+5V±5%
Surface Hardness
Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature
0℃-50℃
Operation Humidity
10% - 80%
Storage Temperature
-5℃-60℃
Storage Humidity
10% - 85%

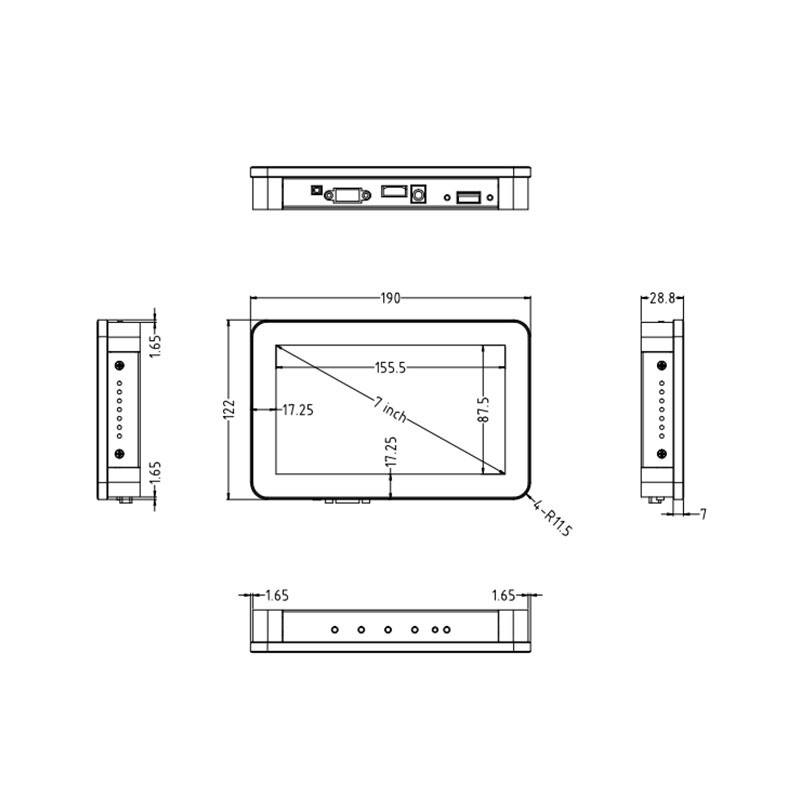

Dimension

Machine(cm)
19(W)* 12.2(H)*2.88(T)
Package(cm)
34(W)* 27.7(H)*9.7(T)
Net weight
0.75kg
Gross weight
1.75kg

Power supply parameters

Power Input
110-240V AC 50/60Hz
Power Output
DC 12V 3A
Standby power consumption
≤0.5W
Overall power consumption
<25W

Included in the Delivery

Manual
* 1
Wall mount bracket
* 1
HDMI/USB cable
* 1
Power Adapter&cable
* 1
