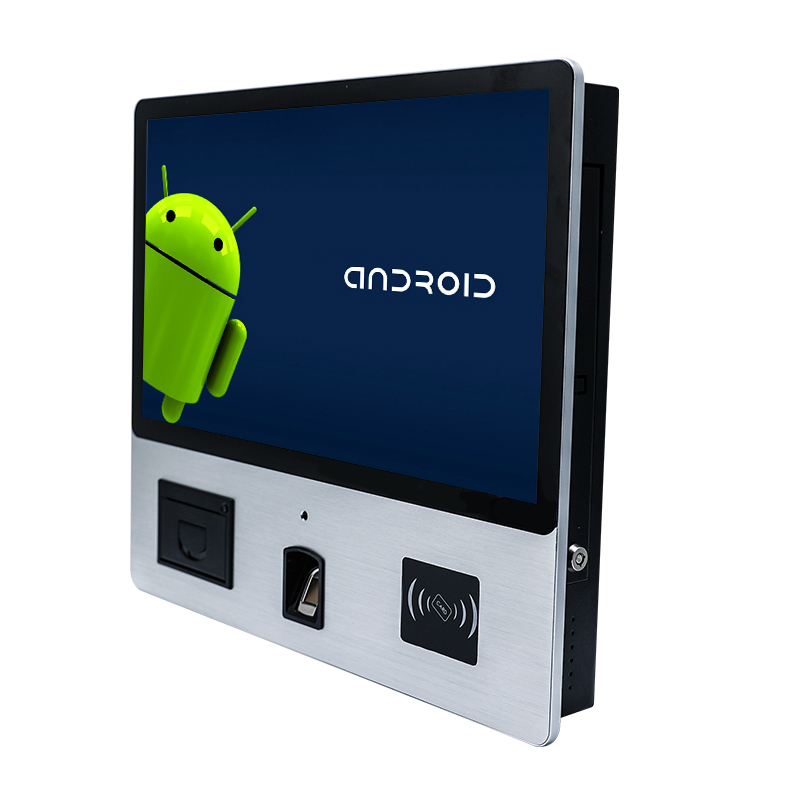

15.6' Wall Mounting Touch Kiosk(ARM) GD156E

Model: GD156E

15.6′ Wall Mounting Touch Kiosk(ARM) GD156E

Physical resolution :1920*1080
Category:ARM
Contrast :1000:1
Screen diagonal :15.6 inch
Aspect ratio :16:9

Features

● Industrial-grade Power Supply
● 30,000-hour extended life LCD display
● Multiple peripheral configurations available
● Easy wall mount or Floor Mount

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design
53% Smaller Bezel
Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.



Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.



Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.



Low Maintenance

2-year repair rate is as kw as 1.5%

Interface l/0

Specifications

LCD Panel

Screen diagonal
15.6 inch
Physical resolution
1920*1080
Aspect ratio
16:9
Display active screen size (mm)
345.2*194.6 mm
Colours displayed
16.7M
Brightness (cd/m2)
≥250
Contrast
1000:1
Visual Angle H/V (°)
178/178
Backlight Lifetime (hours)
LED 30,000
Refrash Rate
60 Hz

Touch Panel

Touch technology
PCAP
Response time
<5ms
Touch points
10 points standard
Touch effective recognition
>1.5mm
Scanning Frequency
200Hz
Scanning accuracy
4096 * 4096
Working Current/Voltage
180Ma/DC+5V±5%
Surface Hardness
Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature
0℃-50℃
Operation Humidity
10% - 80%
Storage Temperature
-5℃-60℃
Storage Humidity
10% - 85%

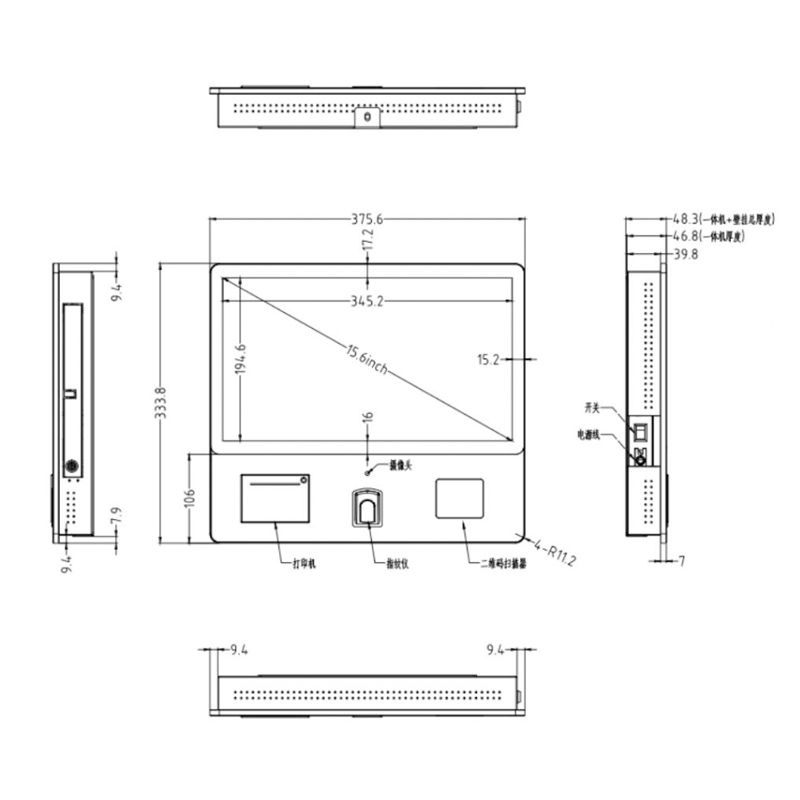

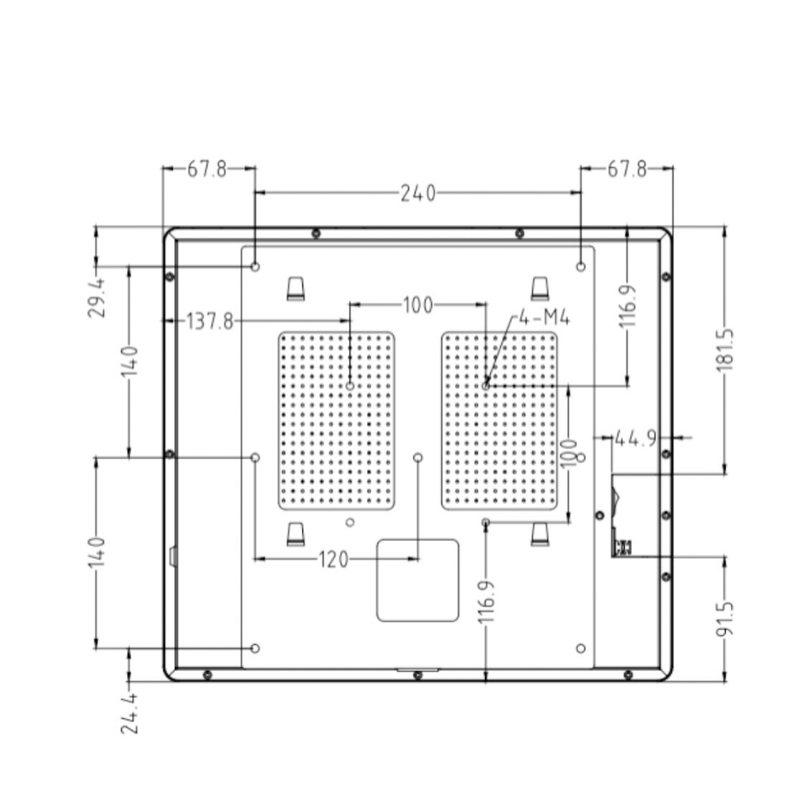

Dimension

Machine(cm)
37.56(W)* 33.38(L)* 4.83(T)
Package(cm)
69.2(W)* 34.7(L)* 15.5(T)
Net weight
4.1 kg
Gross weight
5.6 kg

Power supply parameters

Power Input
110-240V AC 50/60Hz
Power Output
DC 12V 5A
Standby power consumption
≤0.5W
Overall power consumption
Android<36W, X86<60W

Included in the Delivery

Manual
* 1
WIFI antenna
* 1
Wall mount bracket
* 1
AC Power cable
* 1
