75" Touch PC RZ75B

Model: RZ75B

75″ Touch PC RZ75B

Physical resolution ：3840*2160
Category：X86
Contrast ：5000：1
Screen diagonal ：75 inch
Aspect ratio ：16 : 9

Features

● Industrial-grade Power Supply

● 30,000-hour extended life LCD display

● Wall mounted / Floor stand etc

● Surface IP65 waterproof

Get a quote

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design

53% Smaller Bezel

Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.

Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.

Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.

Low Maintenance

2-year repair rate is as kw as 1.5%

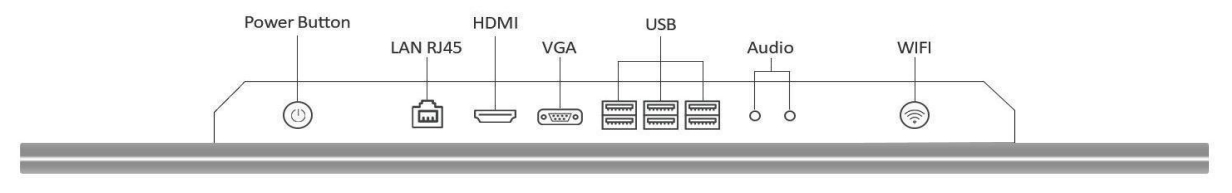

Interface l/0

Specifications

LCD Panel

Screen diagonal

75 inch

Physical resolution

3840*2160

Aspect ratio

16：9

Display active screen size (mm)

1649.6 * 927.9 mm

Colours displayed

16.7M

Brightness (cd/m2）

350

Contrast

5000：1

Visual Angle H/V (°)

178/178

Backlight Lifetime (hours)

LED 50,000

Refrash Rate

4K-30HZ

Touch Panel

Touch technology

PCAP

Response time

<5ms

Touch points

10 points standard

Touch effective recognition

>1.5mm

Scanning Frequency

200Hz

Scanning accuracy

4096 * 4096

Working Current/Voltage

180Ma/DC+5V±5%

Surface Hardness

Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature

0℃-50℃

Operation Humidity

10% - 80%

Storage Temperature

-5℃-60℃

Storage Humidity

10% - 85%

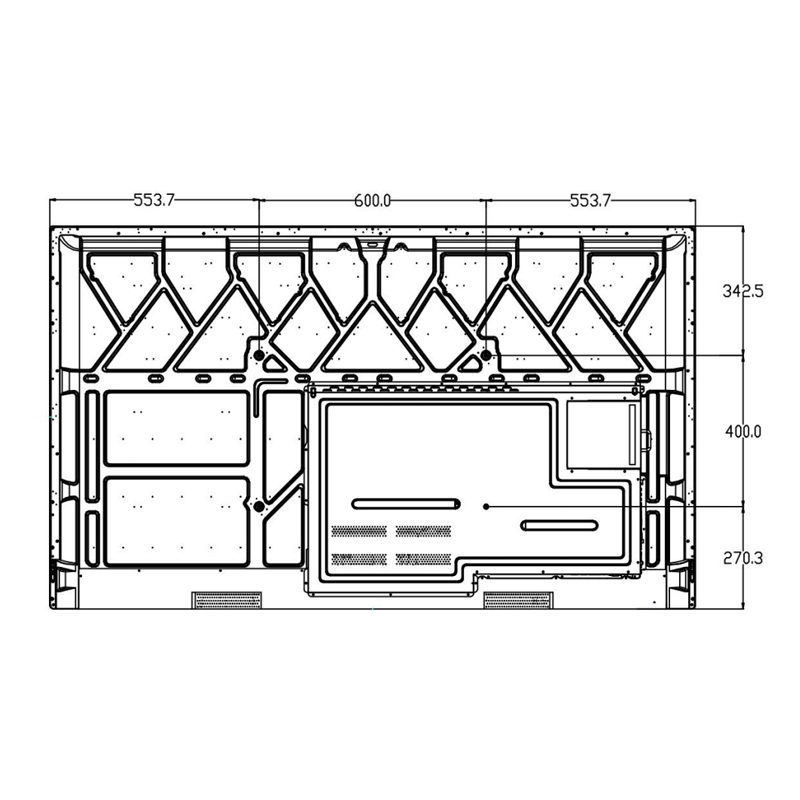

Dimension

Machine(cm)

170.8（L）* 101.3（W）* 8.3（H）

Package(cm)

184.5（L）* 117.5（W）* 21.5（H）

Net weight

43 KG

Gross weight

53 KG

Power supply parameters

Power Input

110-240V AC 50/60Hz

Power Output

DC 12V 5A

Standby power consumption

≤0.5W

Overall power consumption

<380W

Included in the Delivery

Manual

* 1

Wall mount bracket

* 1

WIFI antenna

* 1

Power cable

* 1

File Download

Data Sheet Download
