43" Android Touch PC HD43

Model: HD43

43″ Android Touch PC HD43

Physical resolution :1920*1080(4K ptional)
Category:ARM
Contrast :1200:1
Screen diagonal :43inch
Aspect ratio :16:9

Features

● Industrial-grade Power Supply
● 30,000-hour extended life LCD display

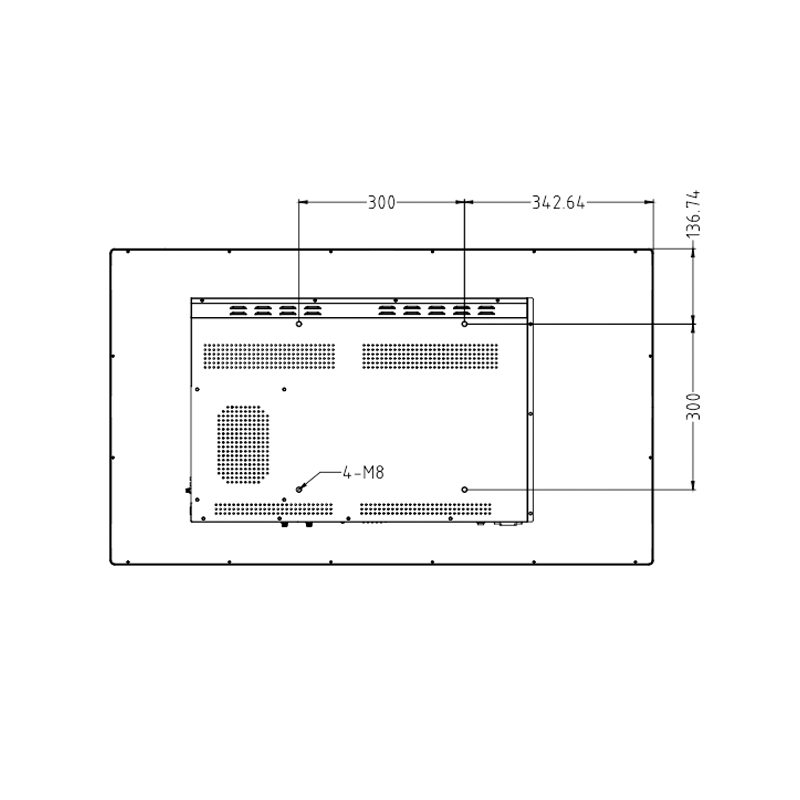

● Wall mounted/desktop stand/embedded etc
● Surface IP65 waterproof

13mm
Ultra-small Bezel

Square POS
supported

Versatile Installation
Options

7*24H Stable
working

Modem & Stylish Design
53% Smaller Bezel
Ultra-sim bazels reduce blackedges by cer 53% comparedto conventicnal medels.This iPad-lke designenhances the visual appealfor catering user

Versatile Installation Options

One dewice for all your needs: fioor-standing, wall-mounted, or desktop setupsSimpifles your infrastructure and reduces davelopment costs by up to 30%.

Seamless POS system Compatibility

Support for Android 12/11

Fully compatible with the latest POS systems, including
Square POS, Stripe POS, Clover POS, and Shopify POS.



Customizable Performance

Select from high-performance RK3588 or cost-effective
RK3568 chipsets.



Uninterrupted, Secure POS Connectivity

Equipped with 5GHz Wi-Fi and BLE 5.0 for secure, stable
connections with POS systems.

Exceptional Reliability

Proven Durability

3.5-vear contnuous screen periormance, des gnedfor 24/7 operation.



Low Maintenance

2-year repair rate is as kw as 1.5%

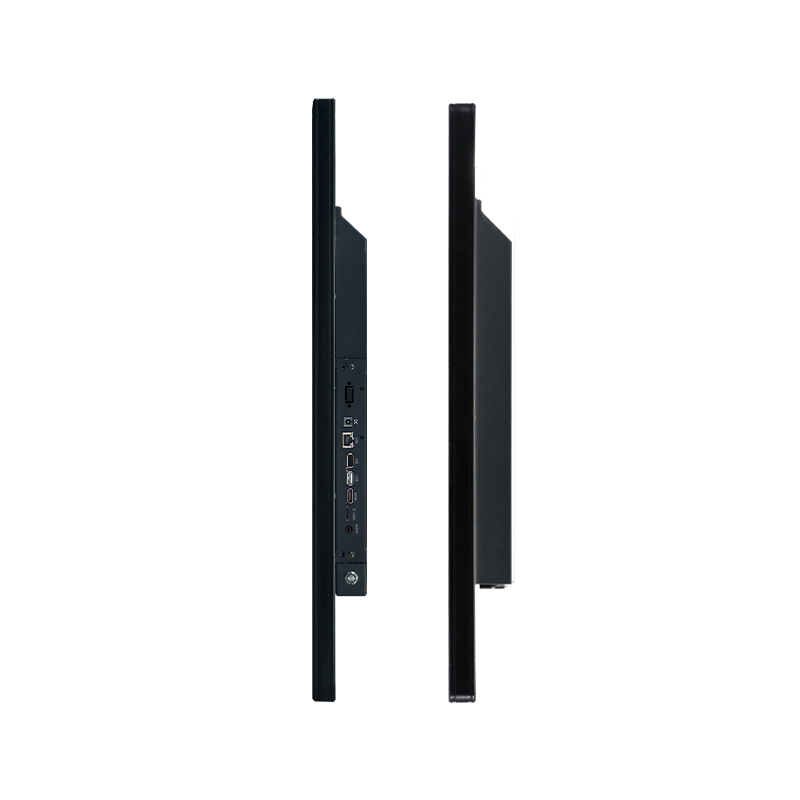

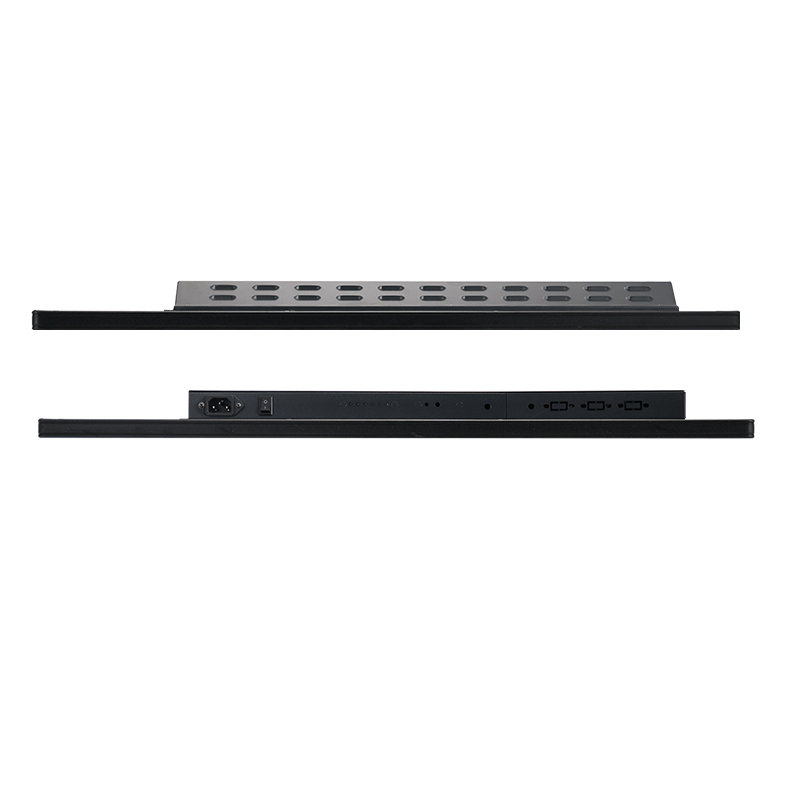

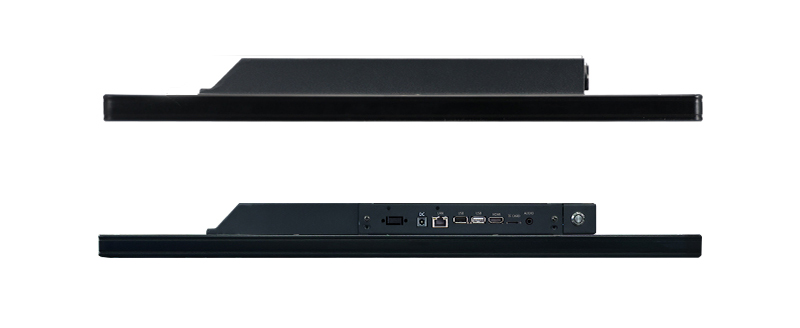

Interface l/0

Specifications

LCD Panel

Screen diagonal
43inch
Physical resolution
1920*1080(4K ptional)
Aspect ratio
16:9
Display active screen size (mm)
944.07* 532.27
Colours displayed
16.7M
Brightness (cd/m2)
250
Contrast
1200:1
Visual Angle H/V (°)
178/178
Backlight Lifetime (hours)
LED 30,000
Refrash Rate
60 Hz

Touch Panel

Touch technology
PCAP
Response time
<5ms
Touch points
10 points standard
Touch effective recognition
>1.5mm
Scanning Frequency
200Hz
Scanning accuracy
4096 * 4096
Working Current/Voltage
180Ma/DC+5V±5%
Surface Hardness
Mohs class 7 explosion-proof glass

Operation Environment

Operation Temperature
0℃-50℃
Operation Humidity
0% - 90%
Storage Temperature
0℃-60℃
Storage Humidity
0% - 65%

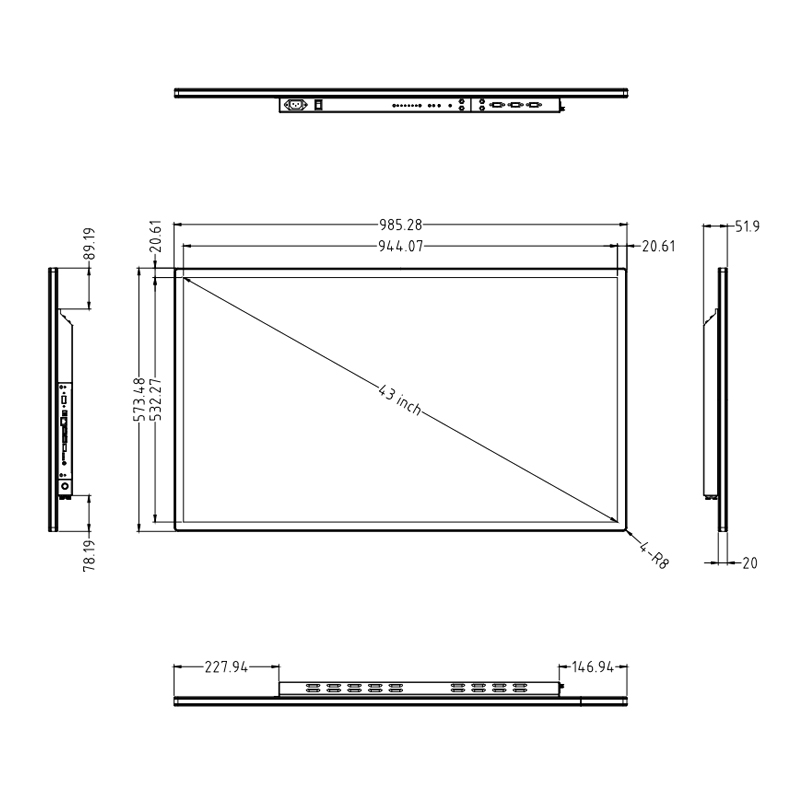

Dimension

Machine(cm)
98.53(W)* 57.35(H)* 5.19(T)
Package(cm)
108.5(W)* 67.9(H)*14(T)
Net weight
17.6kg
Gross weight
25kg

Power supply parameters

Power Input
110-240V AC 50/60Hz
Standby power consumption
≤0.5W
Overall power consumption
<115W

Included in the Delivery

Manual
* 1
Wall mount bracket
* 1
WIFI antenna
* 1
Power Adapter&cable
* 1

File Download

Data Sheet Download

Developing Document

Developing Document Operation System Download link
